Z ADVENTURE LE
VEHICLE SPECIFICATIONS
PERFORMANCE
Top Speed: 20 mph
Range: 35-45 miles
Charge Time: 7-8 hours
Battery: 720 Wh (48v 15Ah)
Motor: 600w nominal
Throttle: Thumb Throttle
Gearing & Rear Derailleur: 8 speed
DIMENSIONS
Vehicle Weight: 75 lbs
Length x Width x Height: 68″ x 28.5″ x 43.5″
Rider Weight Limit: 325 lbs
Recommended Rider Height: 5’1″-6’8″
Seat Height: 31″
FRAMESET
Frame: Aluminum
Suspension (if applicable): Front only/Rear rigid
Brakes: Hydraulic
Tires: GRZLY/4.5″ Front/ 5″ Rear
Inner Tubes: 20″ x 4.5/5″
LIGHTS & HORN

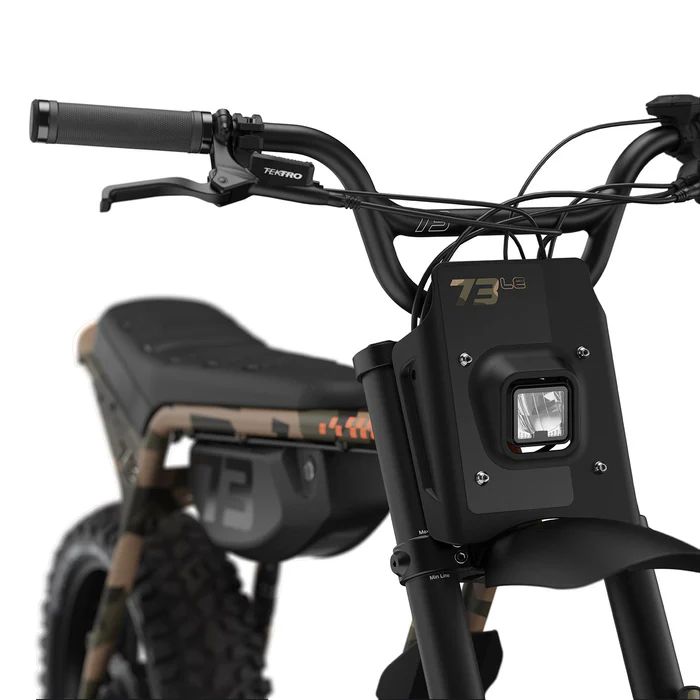

Head Light: LED
Tail Light: LED
Horn: Yes
