SPECIFICATIONS

Total Weight: 65 lbs
Expected Range: 25-35 miles
Seat Height: 30.5″
Ideal Rider Height: 5′” and up
Ideal Rider Weight: Below 250 lbs
Load Capacity: 350 lbs
Class: Class 2
Speed: 20 mph
Pedal Assist: Yes
Throttle: Yes
Motor: 52V Thrillmatic
Rated: 750W
Battery: 20Ah/ 1040 Wh
Cells: LG M50LT (21700)
Charge Time: 5 Hours
Frameset: 4130 Chromoly Steel
Suspension: N/A
Tires: Sticky Sweet 24 x 2.6″
Brakes: Hydraulic Disc F/203mm R/180mm

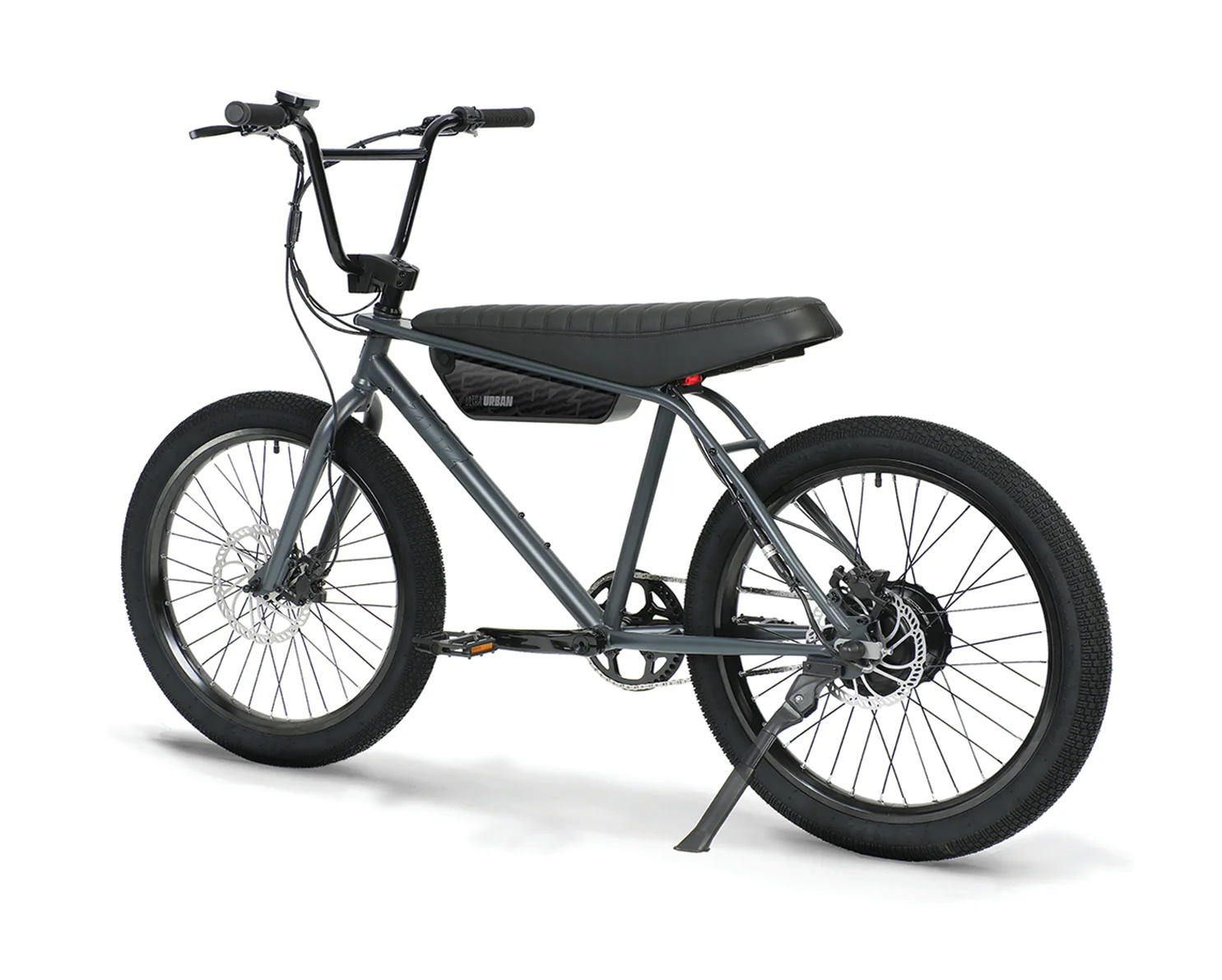

LIGHTWEIGHT, NIMBLE AND SOLID

Built to handle hard riding. It’s easy to ride and easy to own. From its first release four generations ago, the Ultra Urban has been a fan favorite with thousands of fans racking up thousands of miles!

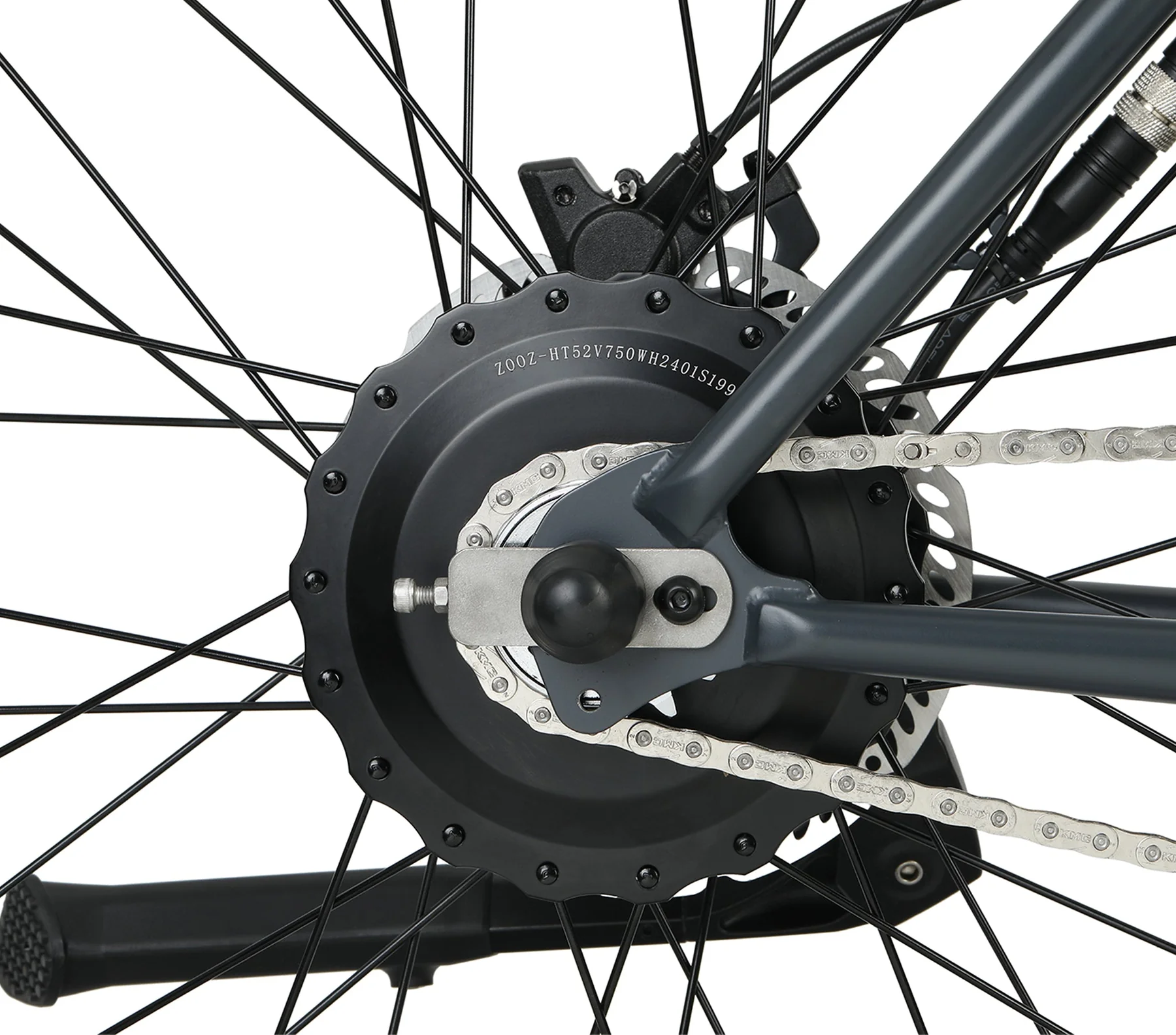

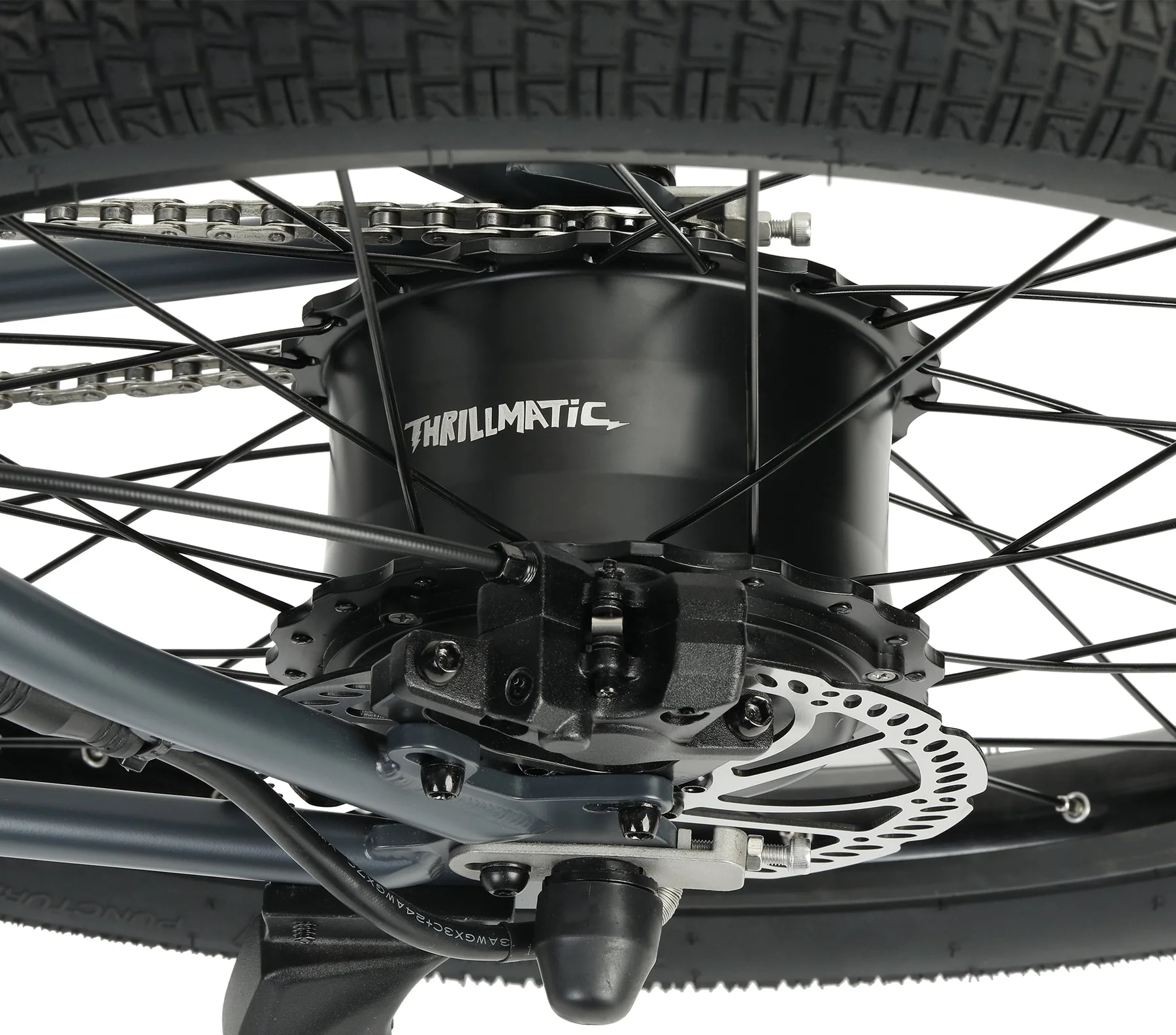

THRILLMATIC MOTOR

All-new geared motor has increased torque, speed, and features metal/nylon gears that provide extra-strength and superior performance.

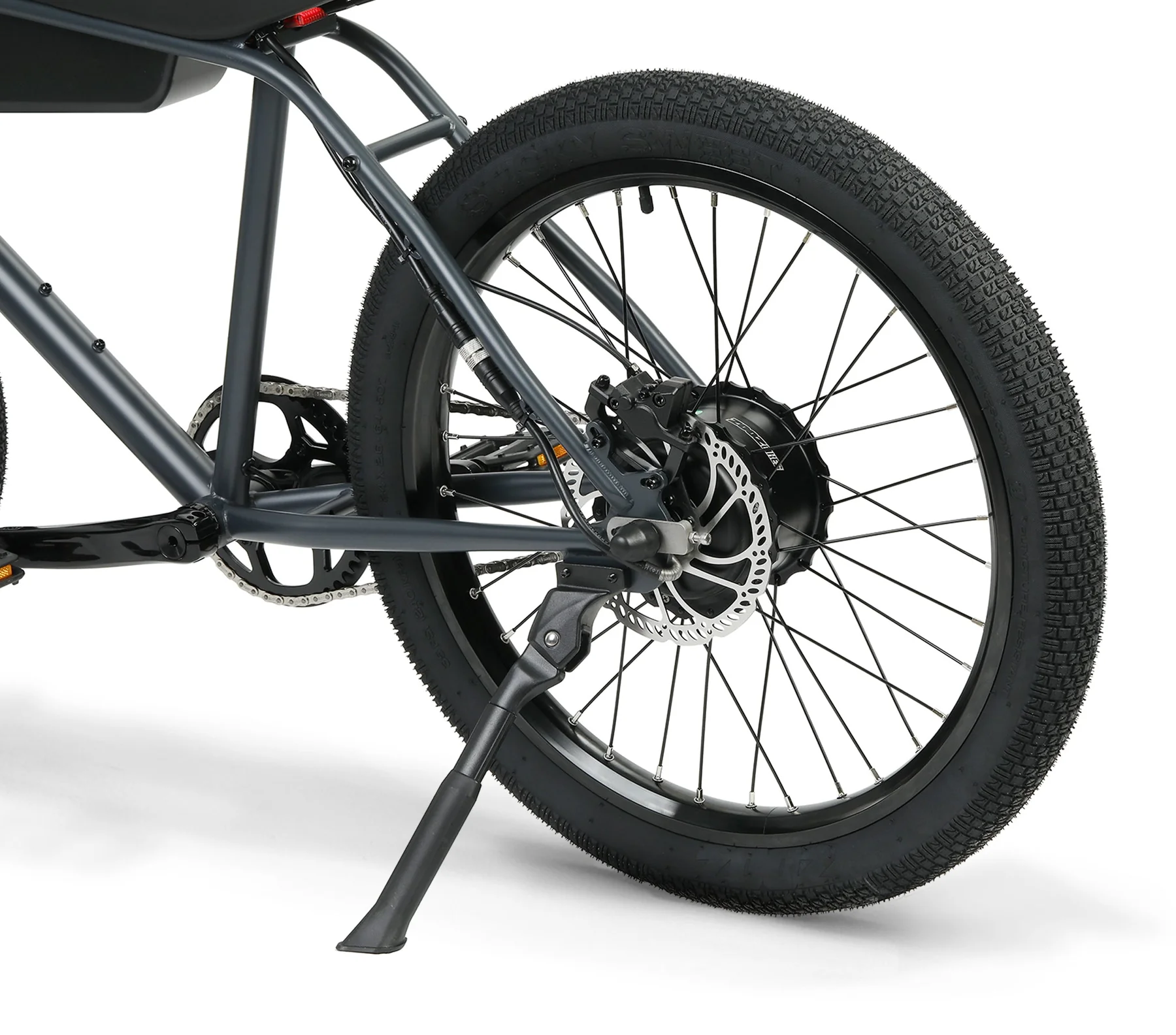

FRAME-KICKSTAND

The frame now has a kickstand mounting plate integrated into the rear dropout. The new robust kickstand and position supports the bike better and eliminates the cranks from hitting and rubbing.

BATTERY

New proprietary battery housing and mounting plate features a fiber/plastic polymer injected around steel plates for superior strength, plus a redesigned, automatic locking pin. 52V 20Ah with LG M50LT 21700 cells.

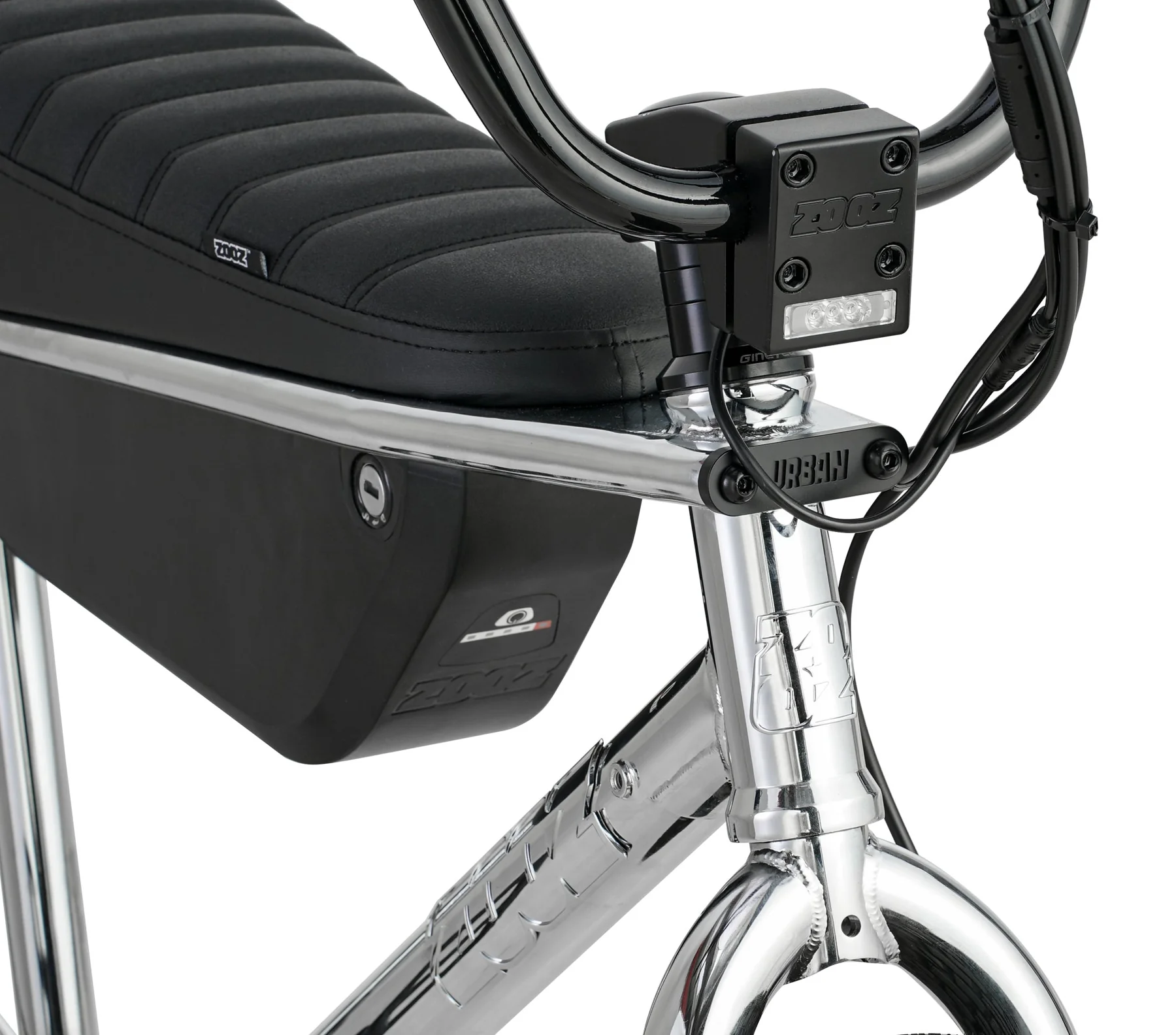

STEM NECK

Integrated LED headlight, 370 lumens. Edited geometry for enhanced handling and clearance.

TIRES

The UU finally gets its own Sticky Sweet tires. 24 x 2.6

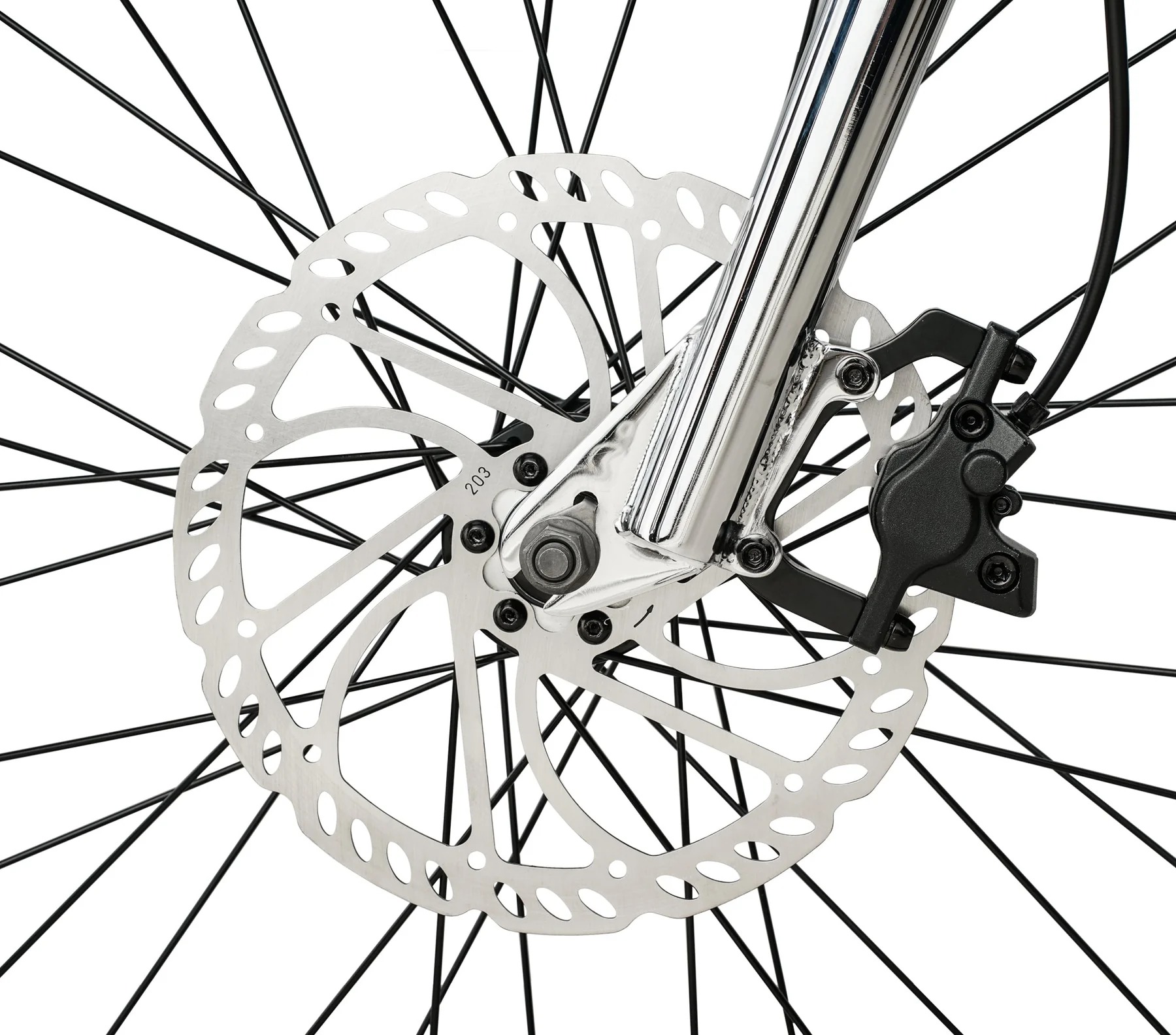

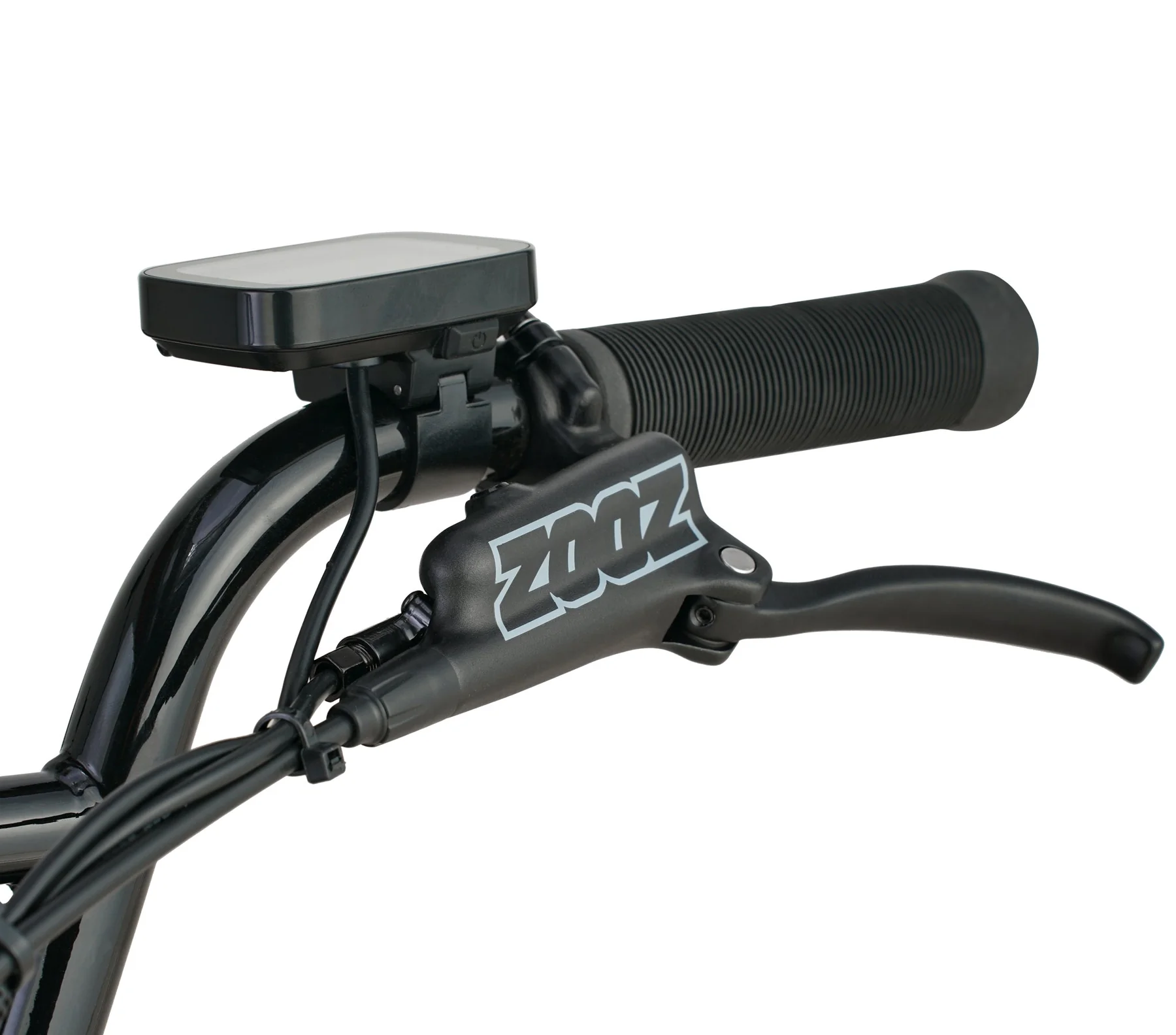

BRAKES

The Gen 4 benefits from the rear 180mm, front 203mm brake rotor sizes. Hydraulic disc brakes provide superior stopping power in wet and dry conditions.
